Brick Wall Reinforcement Mesh

Brick Wall Reinforcement mesh is a joint reinforcement product to add strength to a masonry assembly as well as adding crack and shrinkage resistance.

Classification:

  • 产品描述
  • Brick Wall Reinforcement Mesh


    ● Description:
    Brick Wall Reinforcement mesh is a joint reinforcement product to add strength to a masonry assembly as well as adding crack and shrinkage resistance. Consists of two or more parallel and deformed longitudinal wires welded to a continuous diagonal cross wire at 16″ (400mm)O.C. Out-to-out spacing is approximately two inches less than the nominal thickness of the wall. It comes in 10’ lengths as well as 4, 6, 8, 10, and 12 inch widths depending on the block size being used. It also comes in 3 different finishes; mill galvanized, as well as hot dipped, or stainless steel.


    ● Variety:

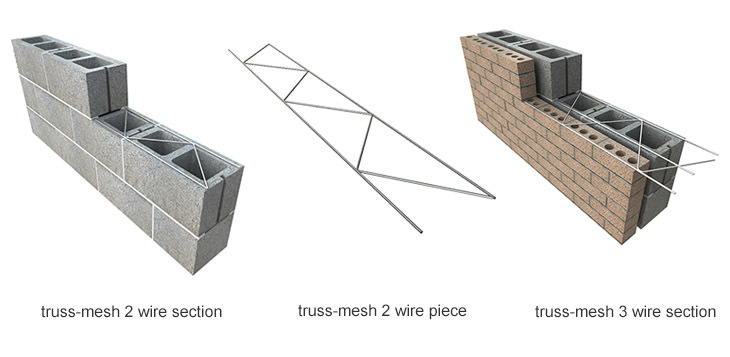

    1、Truss-Mesh Reinforcement

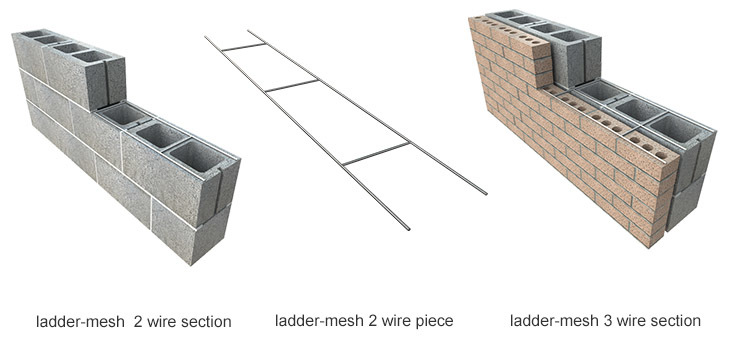

    2、Ladder-Mesh Reinforcement



    ● Details & Sizing:

    •WIRE DIAMETER:



    Wire Gauges

    Side Rods

    Cross Rods

    Standard

    9 gauge (.148 in)

    9 gauge

    Heavy Duty

    3/16" (.187 in)

    9 gauge

    Extra Heavy Duty

    3/16" (.187 in)

    3/16"



    •BLOCK SIZES:    4”    6”    8”    10”    12”

    •LENGTH: 10’

    •Packaging: 50 pcs per bundle, 1000pcs per pallet
    Finishes: Mill Galvanized
    Hot Dip Galvanized
    Stainless Steel
    Note: All sizes can be made as customer requirements.


    ● Features:
    •High strength and firm structure.
    •Reinforce a variety of masonry walls.
    •Reduce crackings that arise from thermal stresses.
    •Enhance the resistance to water penetration.
    •Increases the elasticity.
    •Corrosion and rust resistant.
    •Durable and long service life.
